2020 John Deere 470G LC Tracked Excavator

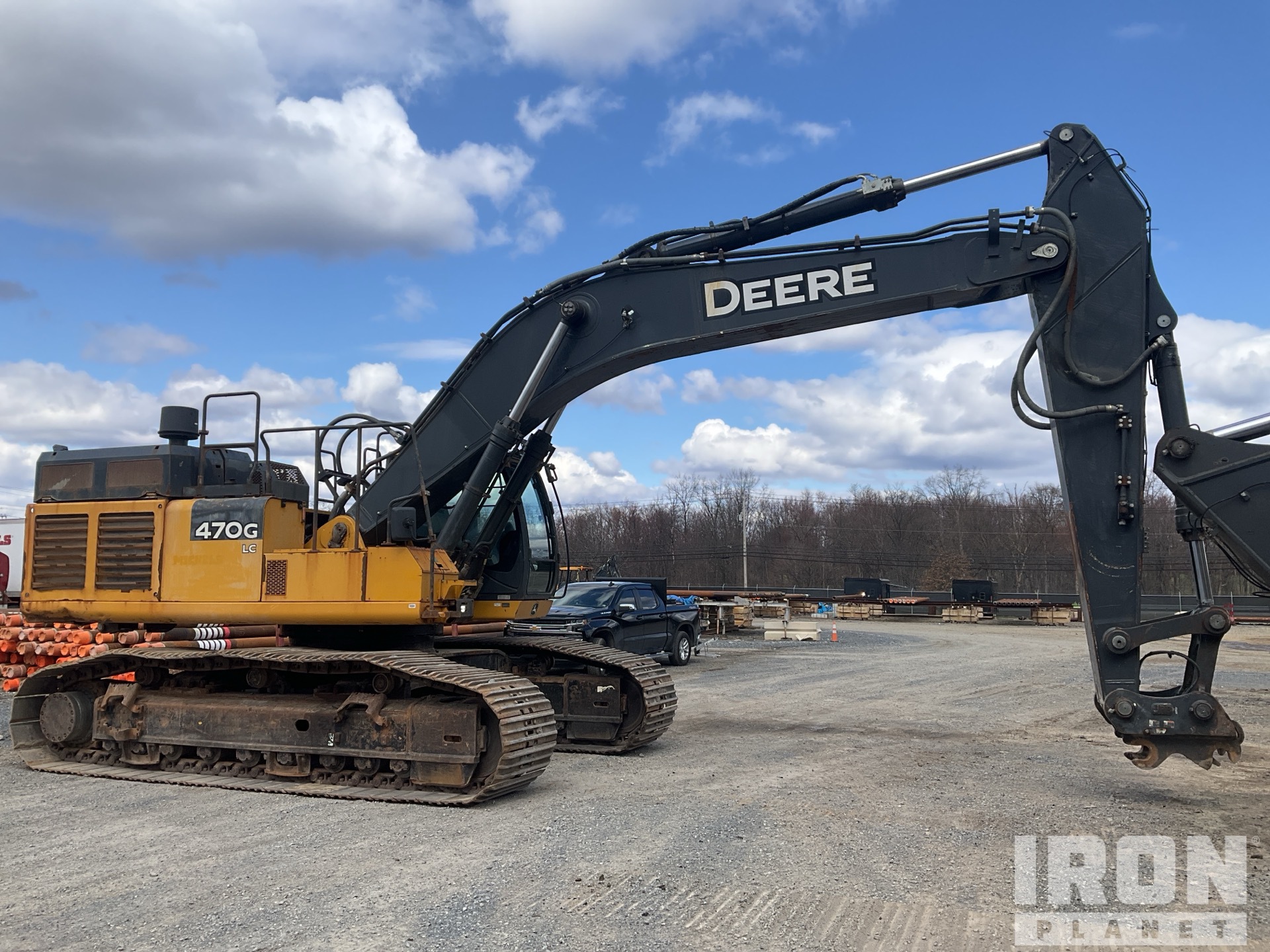

Picture, Left Front Corner

Picture, Left Rear Corner

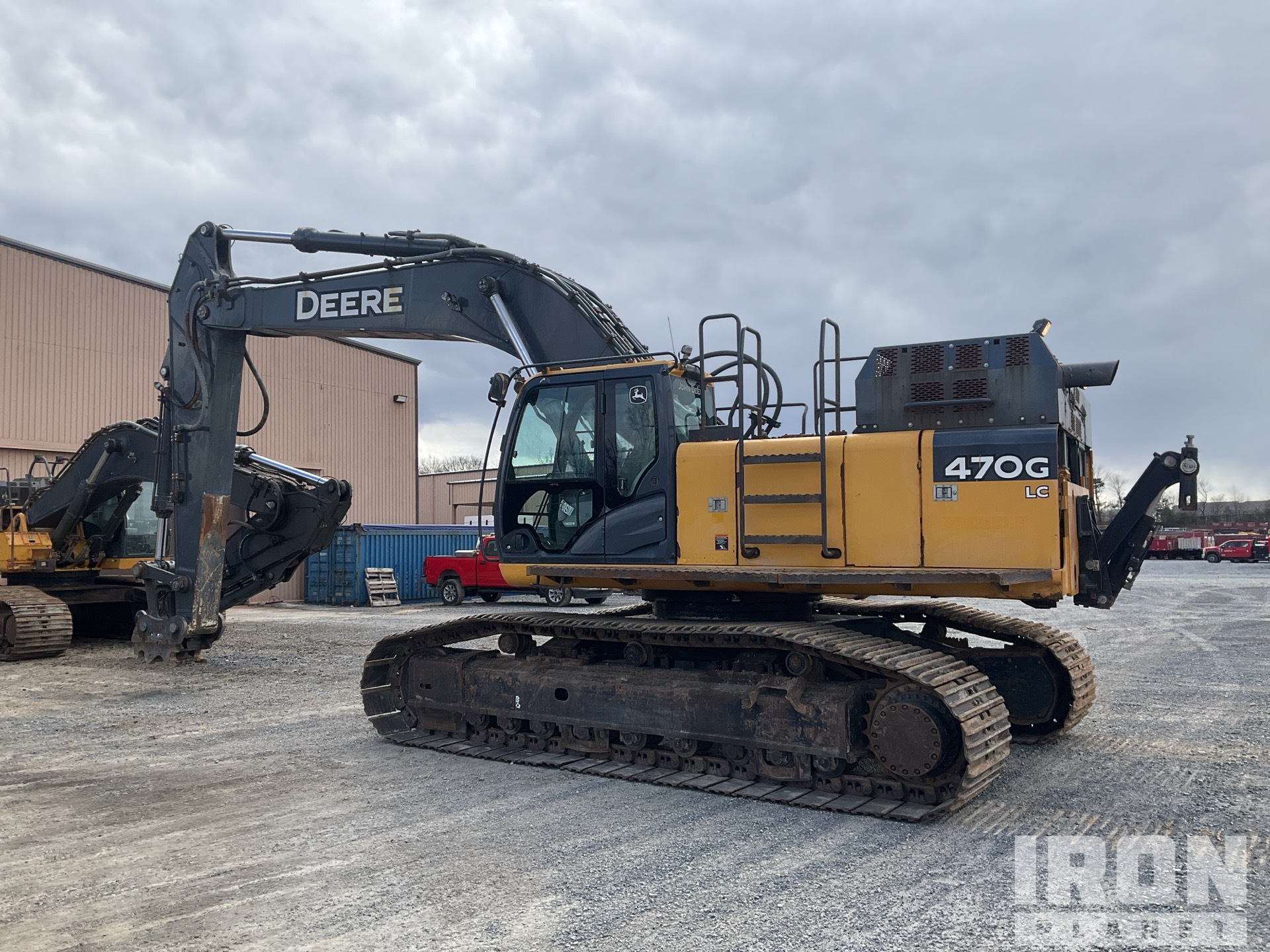

Picture, Right Rear Corner

Picture, Right Front Corner

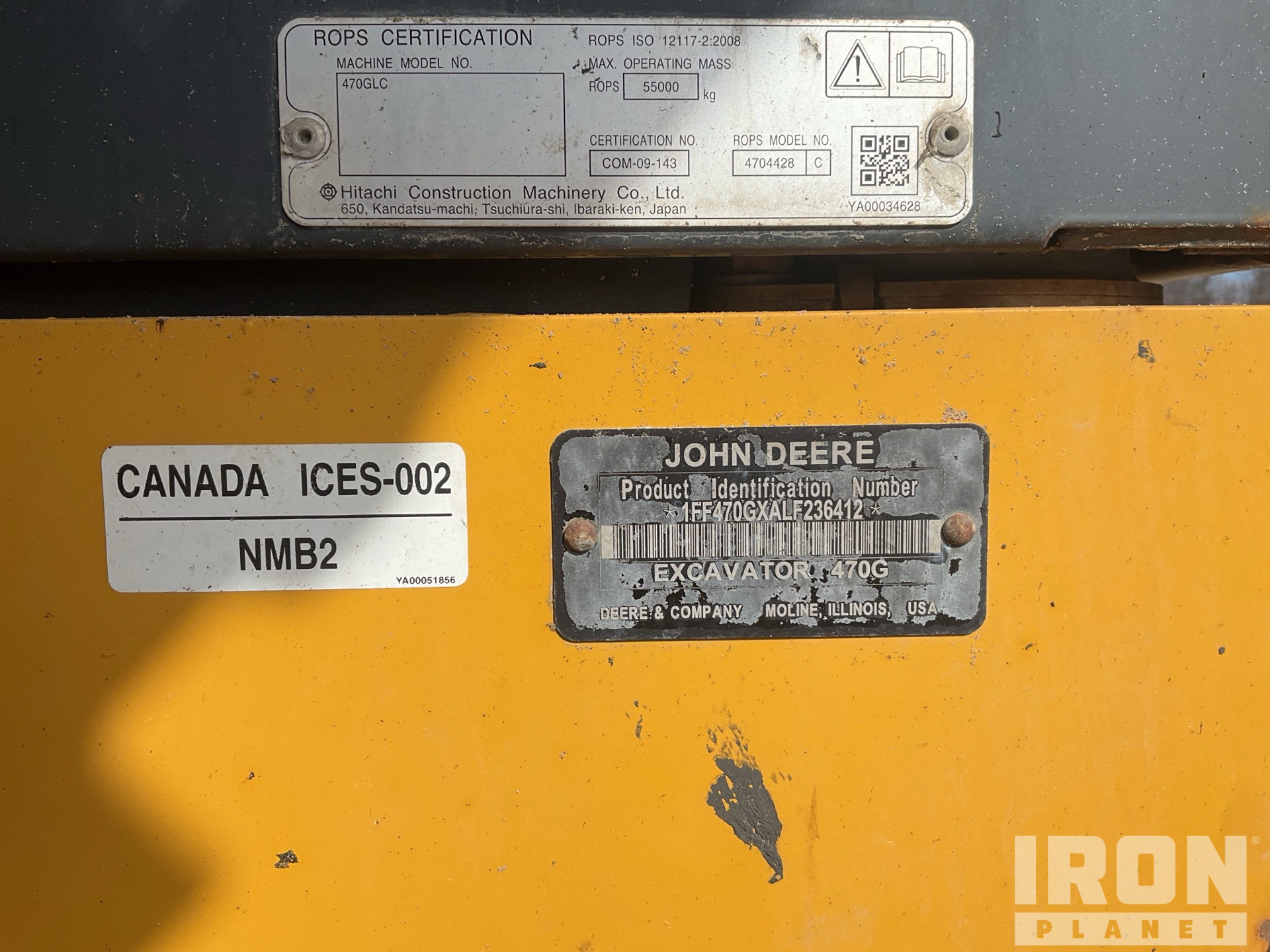

Serial Number / VIN

1FF470GXALF236412

CE Mark

No CE mark found

Paint

Damage/Rust

Body Panels

Left side cover heavy rust / corrosion, Left rear door heavy rust / corrosion, Right rear door heavy rust / corrosion, Battery box heavy rust / corrosion, Hood heavy rust / corrosion, Right side cover heavy rust / corrosion, Grille heavy rust / corrosion, Engine cover missing latches

Steps

Left track frame steps damaged, Right track frame steps damaged, Tool box step damaged

Hand Rails

Rust

Exterior Lights

All lights operational

Travel Alarm

Operational

Horn

Operational

Seat Belts

Operational

Safety Lock Out/Stop

Operational

Swing Brake

Operational

Current Safety Manual

Current Operator/Maintenance Manual

Seat/Armrests

Operator seat cushion damaged, Seat loose on mounting base

Glass

No visible damage or missing components

Mirrors

Cab Door

No visible damage or missing components

Steering Controls

Hydraulic Controls

Drivetrain Controls

Dash Console

Engine Oil Pressure

No oil pressure indicator

Warning Lights

Operational

Gauges

Operational

Rear View Camera

Camera operates as intended Could not be checked, counterweight removed camera on counterweight

Hour Meter / Odometer

5843 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.

Air Conditioner

The ambient temperature is too cold to check

Heater

Operational

Limited Function Check

The main components are in place and operational as noted.

Engine

No US EPA Label Present Requires Diesel Exhaust Fluid, Reman engine installed

Emission Label

Missing from valve cover

A/C Compressor

In place; ambient temperature too cold to check operation

Starter

Operational

Exhaust System

No visible damage or missing components

Radiator

Oil Leaks

No dripping leaks

Fuel Leaks

No dripping leaks

Cooling System Leaks

No dripping leaks

Engine - Left Side

Engine - Right Side

DEF / AdBlue Tank

Limited Function Check

The engine started and ran.

Left Drive Motor

Right Drive Motor

Left Final Drive

Right Final Drive

Limited Function Check

The drivetrain was operational as noted., Drivetrain was operational, left side track frame carrier roller damaged did not want to track too far and throw track

Pumps (Hydraulics)

Collection on top and sides

Valves

Hydraulic Tank

Hydraulic Control Pattern Changer

Could not locate

Hoses (Hydraulics)

Several hardliners flaking rust

Auxiliary Hydraulic Plumbing

Capped off, End of stick

Swing Motor

Hydraulic Center Swivel

Boom Lift Cylinder(s)

Stick Cylinder

Bucket Cylinder

Heavy pin and bushing movement

Limited Function Check

The hydraulic system was operational.

Boom Condition

Underside damage from bucket

Stick Condition

Inside damaged

Boom Base Pin and Bushings

Heavy movement

Pin and Bushings Boom to Stick

Heavy movement

Pin and Bushings Stick to Bucket

Heavy movement

Pins and Bushings Stick to Coupler

Heavy movement

Turntable Bearing

Bottom Covers

5 Damaged

Limited Function Check

The main components were operational with damage as noted.

Left Roller Frame

Left Track Tensioner

Over tightened

Left Track Pads

35.5 in Wide Triple Grouser Some bent

Left Grouser Height

34 mm

Left Track Links

127 mm Scalloped Chain over tightened to hide heavy pin wear

Left Track Bushings

64 mm Worn

Left Carrier Rollers

3 carrier rollers #1 166 mm #2 167 mm #3 164 mm Middle roller damaged, falling off, front roller, missing outer bolt

Left Bottom Rollers

9 Bottom Rollers #1 n/a mm #2 197 mm #3 196 mm #4 n/a mm #5 196 mm #6 196 mm #7 n/a mm #8 n/a mm #9 n/a mm Could not get all roller measurements due to rock guards

Left Idler

24 mm

Left Sprocket

Worn

Right Roller Frame

Right Track Tensioner

Right Track Pads

35.5 in Wide Some bent

Right Grouser Height

34 mm

Right Track Links

125 mm Scalloped Heavy wear between links, can move by hand

Right Track Bushings

65 mm

Right Carrier Rollers

3 Carrier Rollers #1 164 mm #2 168 mm #3 166 mm

Right Bottom Rollers

9 Bottom Rollers: #1 n/a mm #2 197 mm #3 195 mm #4 n/a mm #5 195 mm #6 196 mm #7 n/a mm #8 n/a mm #9 n/a mm

Right Idler

25 mm

Right Sprocket

Worn

Quick Coupler

Not operationally checked, Heavy wear in pin bores
